Optical Amplifiers

Technical data on request

Press Jobs Legal notice Data protection Login GTC

Do not miss any news! Sign-in for our newsletter.

Optical Booster Amplifiers

Standard optical amplifiers

• Erbium doped fiber amplifier for optical signals 1540nm - 1560nm on single mode fibers • Constant output power or gain mode • SBS detection optionally available

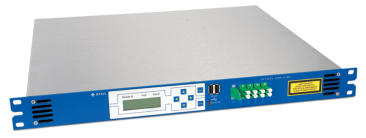

19” Stand-Alone Units

• Cladding-pumped ErYb-doped fiber amplifier for optical signals 1545nm - 1565nm on single mode fibers • Usable in combination with external modulated optical transmitter

• Cladding-pumped ErYb-doped fiber amplifier for optical signals 1545nm - 1565nm with integrated WDM technology for xPON (GPON, 10GPON, XGPON, XGSPON, NGPON2, GEPON, Ethernet PtP) • Wavelength multiplexing of RF video (CATV) and IP signals in FTTH PON networks • Usable in combination with external modulated optical transmitter

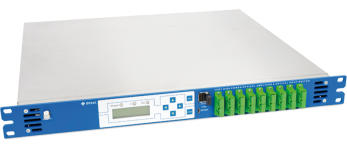

OVxEnxxx

• Erbium doped fiber amplifier for optical signals 1530nm - 1561nm on single mode fibers • Gain flattened technology for optical multi-channel DWDM application • Constant output power

Optical Booster Amplifiers with integrated WDM

High performance optical amplifiers for outdoor use

• Amplifier for FTTx networks with HF overlay for CATV broadcasting for outdoor locations • Embedded management and monitoring controller NECxE-E with web and SNMP interface • Universal I / O for remote functions • Climatic specification: ETS 300 019, class 3.3 (-25 ... + 60 ° C)

Optical Booster Amplifier with Integrated Optical Switch and WDM

• Cladding-pumped ErYb-doped fiber amplifier for optical signals 1545nm - 1565nm on single mode fiberswith integrated WDM technology for xPON (GPON, 10GPON, XGPON, XGSPON, NGPON2, GEPON, Ethernet PtP) • Usable in combination with external modulated optical transmitter • Wavelength multiplexing of RF video (CATV) and IP signals in FTTH PON networks • 1:2 optical switch for redundancy integrated

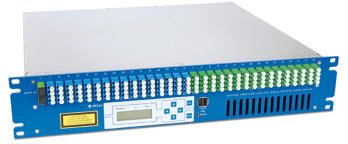

High performance optical amplifiers for outdoor use with WDM

• Amplifiers in FTTx networks with RF overlay for CATV broadcasting for outdoor locations with integrated technology for xPON (GPON, 10GPON, XGPON, XGSPON, NGPON2, GEPON, Ethernet PtP) • Embedded management and monitoring controller NECxE-E with web and SNMP interface • 16 or 32 output ports • Climatic specification: ETS 300 019, class 3.3 (-25 ... +60°C) • Optionally with integrated, optical input filter

Dual Optical Amplifier for DWDM applications

• Erbium doped fiber amplifier for optical signals 1530 nm - 1561nm on single mode fibers • Two independent amplifiers in one common unit • Gain flattened technology for optical multi-channel DWDM application • Constant output power or gain mode • Variable gain • Climatic specification: ETS 300 019, class 3.3 (-25 ... + 60 ° C)

High performance optical amplifiers for outdoor use

• Amplifier for FTTx networks with HF overlay for CATV broadcasting for outdoor locations • Embedded management and monitoring controller NECxC with web and SNMP interface • 1, 2,4, or 8 output ports • Climatic specification: ETS 300 019, class 3.3 (-25 ... + 60 ° C)

High performance optical amplifiers for outdoor use with WDM

• Amplifiers in FTTx networks with RF overlay for CATV broadcasting for outdoor locations with integrated technology for xPON (GPON, 10GPON, XGPON, XGSPON, NGPON2, GEPON, Ethernet PtP) • Embedded management and monitoring controller NECxC with web and SNMP interface • 16, 32 or 64 output ports • Climatic specification: ETS 300 019, class 3.3 (-25 ... +60°C) • Optionally with integrated, optical input filter

Dual Optical Amplifier for O-band DWDM applications

• Bismuth doped fiber amplifier for optical signals 1260 nm - 1340 nm on single mode fibers • Two independent amplifiers in one common unit • Gain flattened technology for optical multi-channel DWDM application • Constant output power or gain mode • Climatic specification: ETS 300 019, class 3.3 (-25 ... + 60 ° C)
