Ethernet Switch for secure communication
systems in rough envirements
Ethernet switch for
rough envirements
Specially developed for use in the railway sector, but also
suitable for use in harsh environments, the RES10G optimises
the performance and security of independent network
infrastructure. The areas of application are diverse, ranging
from trains to mining to aerospace and military. With the
introduction of the RES10G, there is now a turnkey system
solution, as all components, such as antennas, connection
cables, etc., are now available from a single manufacturer.
This simplifies both the supply chain and operation.
Specially designed for connecting all network devices and
applications such as WLAN, mobile/satellite uplinks and
internal information systems, the RES10G offers up to six 10
Gigabit Ethernet ports for connection to high-end access
points or servers. These can be connected via copper cable or
fibre optic cable. The 24 Gigabit Ethernet ports support Power
over Ethernet according to the latest IEEE802.3bt standard
with up to 90 W per port to supply the connected devices with
data and power.
Applications
Thanks to its robust design and high-quality components, the
Ethernet switch can be used in many areas with harsh
environmental conditions. By using the right components,
tailored to the respective applications, you get a powerful
communication system.
Benefits of new Ethernet Switch:
•
Latest Power over Ethernet Standard: Supporting latest
Power over Ethernet standard IEEE802.3bt Type 4 with full
four pair power transmission and up to 90W output power per
port.
•
Extended PoE power budget: Overall PoE power budget to
up to 250W, a separate power supply can be used to feed
directly the PoE supply voltage and unload the internal power
supply.
•
High port density and fast installation: Thanks to M12
push-pull connector technology a high port density with up to
24 user ports and up to 6 uplinks is accessible via the front of
the switches with still an easy and fast installation.
•
State-of-the-art and secure management:
NETCONF/RESTCONF management protocols allow a fully
automated configuration and seamless integration in umbrella
network management platforms.
•
Made in Germany: Designed and developed by
HUBER+SUHNER in-house Hardware and Software
development. Manufacturing in own production facilities
located in Germany. Fully compliant with the Railway
standards EN 50155 and EN 45545-2.
•
Future-proof product: Hardware features like 10 Gigabit
Ethernet, Power over Ethernet with up to 90W and a high port
density combined with a sophisticated software.

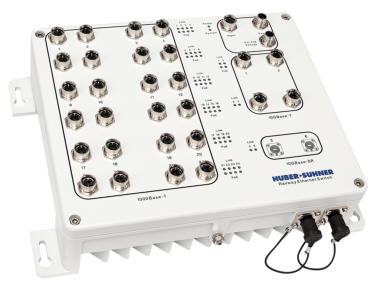

Railway Ethernet Switch
Railway operators and system integrators can now use a new
Railway Ethernet Switch (RES10G) from HUBER+SUHNER to
enhance network performance and security on the train, while
also reducing time-to-market. The new RES10G switch has been
specifically designed to connect all on-board Ethernet based
devices for applications such as: passenger Wi-Fi,
cellular/satellite uplinks and passenger information systems.
The RES10G complements HUBER+SUHNER's rail portfolio in
the field of communication technology. This includes the
SENCITY
®
Rail ACTIVE roof antenna, which is used for train-to-
ground communication and GNSS services, and the SENCITY
®
Rail ACTIVE wagon antenna for on-board WLAN operation.
