The efficient gigabit solution for network expansions and existing networks
Hybrid Fibre Coaxial (HFC) networks in Europe still offer considerable potential
for technical development. They are capable of delivering gigabit speeds and
reliably meeting the ever-increasing bandwidth demands of both residential and
business users. As such, HFC infrastructures do not merely serve as a high-
performance bridging technology on the path to nationwide fibre-optic
connectivity, but also remain a long-term alternative to FTTH fibre-optic
connections.
Performance boost through DOCSIS 3.1 and DOCSIS 4.0
DOCSIS 3.1 already enables downstream data rates of up to 1 Gbit/s. DOCSIS
4.0 represents the next strategic technological leap in the cable network:
significantly increased overall capacities, improved latency and, in the future,
near-symmetrical bandwidths, which were previously the preserve of traditional
FTTH connections. DOCSIS 4.0 thus lays the foundation for next-generation
gigabit business models. With transmission rates of up to 10 Gbit/s for
downloads and up to 6 Gbit/s for uploads, network operators can compete with
pure fibre-optic networks in terms of performance – without having to implement
a full FTTH rollout to every building.
HFC 1.8 GHz (DOCSIS 4.0)

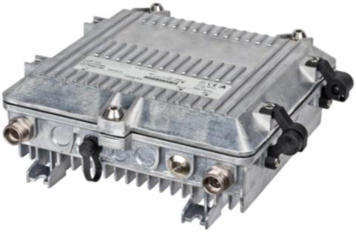

VGP2144D-1G8:
Distribution amplifier with an active output stage
•
Modern, monitorable compact amplifier for interactive HFC networks
•
Frequency range: up to 1794 MHz
•
2 separate high-power output stages
•
High gain of up to 44 dB in ALSC-controlled operation
•
Remote power supply: 10 A at each input/output, local power supply:
10 A
•
Interface for monitoring transponders (HMS/DOCSIS)
•
Integrated FSK receiver for unidirectional management
•
Frequency range: up to 1794 MHz
•
High gain of up to 44 dB in ALSC-controlled operation
•
Output stage with 3rd generation GaN technology
•
Remote power supply: 10 A at each input/output, local power supply:
10 A
•
Interface for monitoring transponders (HMS/DOCSIS)
•
Integrated FSK receiver for unidirectional management
•
Configurable outputs
VGE15xxx-1G8-RA
Remote-powered booster amplifier up to 1794 MHz
•
Downstream gain: 15 dB
•
Upstream gain: 5.6 dB
•
Available return path bandwidths: 85 MHz / 204 MHz / 396 MHz
•
Remote power supply via cabling (max. 8 A)
•
Easy installation
•
Upgrade kit available for existing networks
•
Available VGE types:
- VGE15108-1G8-RA – Frequency range 108…1794 MHz
- VGE15254-1G8-RA – Frequency range 254…1794 MHz
- VGE15492-1G8-RA – Frequency range 492…1794 MHz

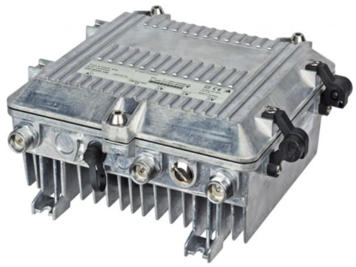

VGP3244D-1G8:
Active DUAL distribution amplifier featuring 3rd-generation GaN
technology
