Lab automation

Broadband Transmitters

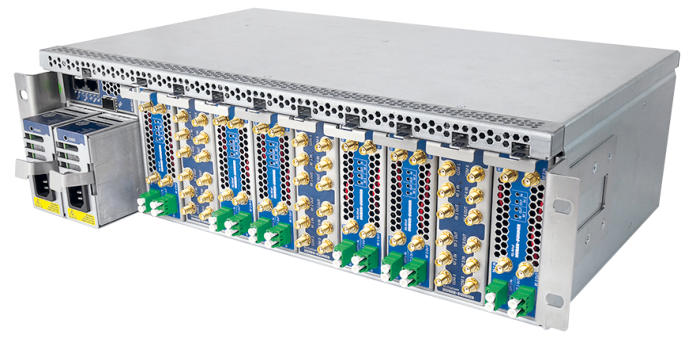

19“ CUBOrack for RFoF modules

Press Jobs Legal notice Data protection Login GTC

Do not miss any news! Sign-in for our newsletter.

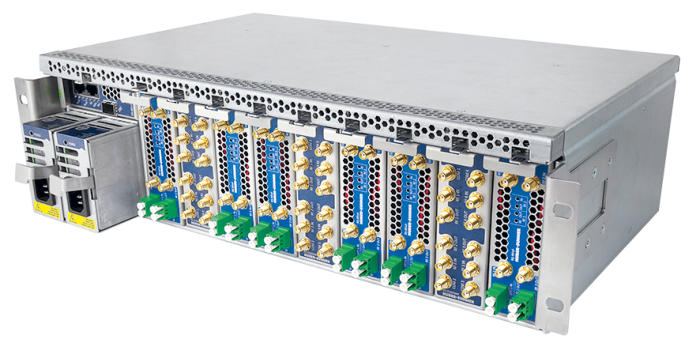

• The depth of the 19" CUBOrack allows installation of another 19" CUBOrack back to back, allowing up to 36 transceivers within the same installation height • If the configuration of the system requires bi- directional RF functionality an RFoF duplexer module electronic card is used.

CUBOrack

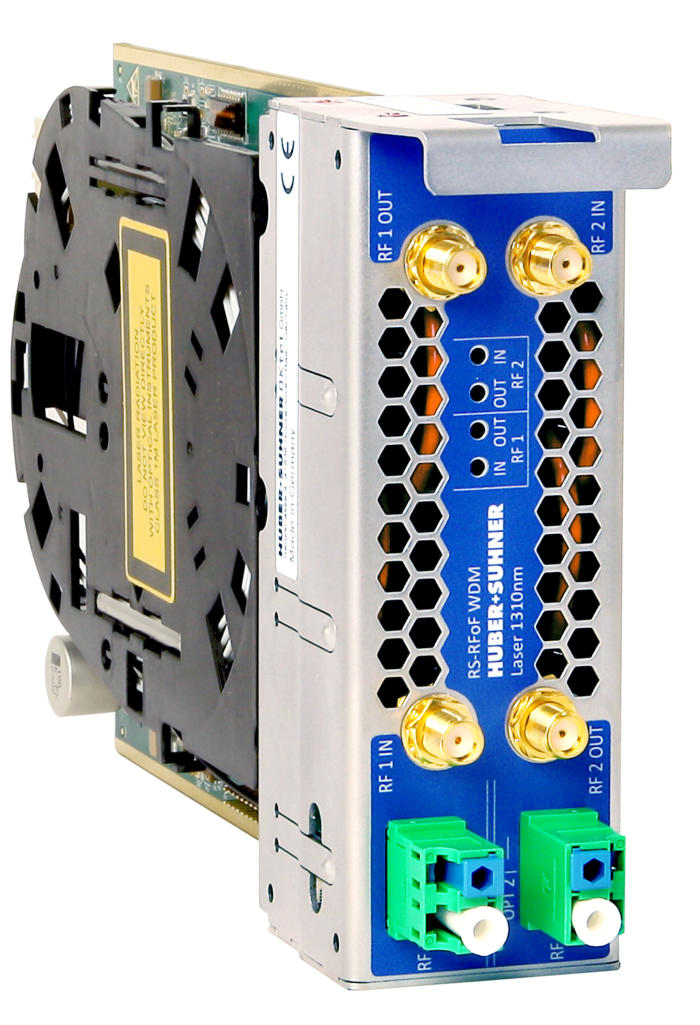

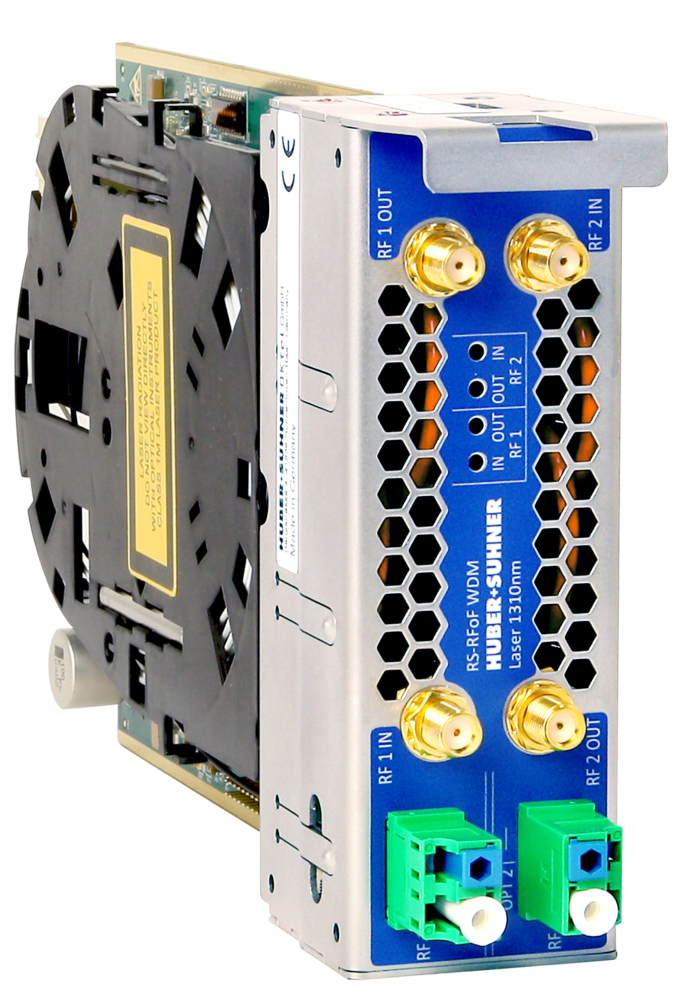

• Dual transceiver RFoF module with two optical transmitters and receivers • High optical output power for quality links • RF frequency range: 0.4 – 7.125 GHz • Adjustable RF gain • Monitors RF, optical levels, and temperature • Fits 3RU (9 slots) and 1RU (2 slots) CUBO chassis • CUBO rack NIC with WebGUI, SNMP, and RESTCONF

Dual RX / TX, 7.125GHz, 2 RF IN / OUT, 2 FO IN / OUT, WDM 1310nm or 1550nm

RS-RFoF08-13T2R2W / RS-RFoF08-15T2R2W

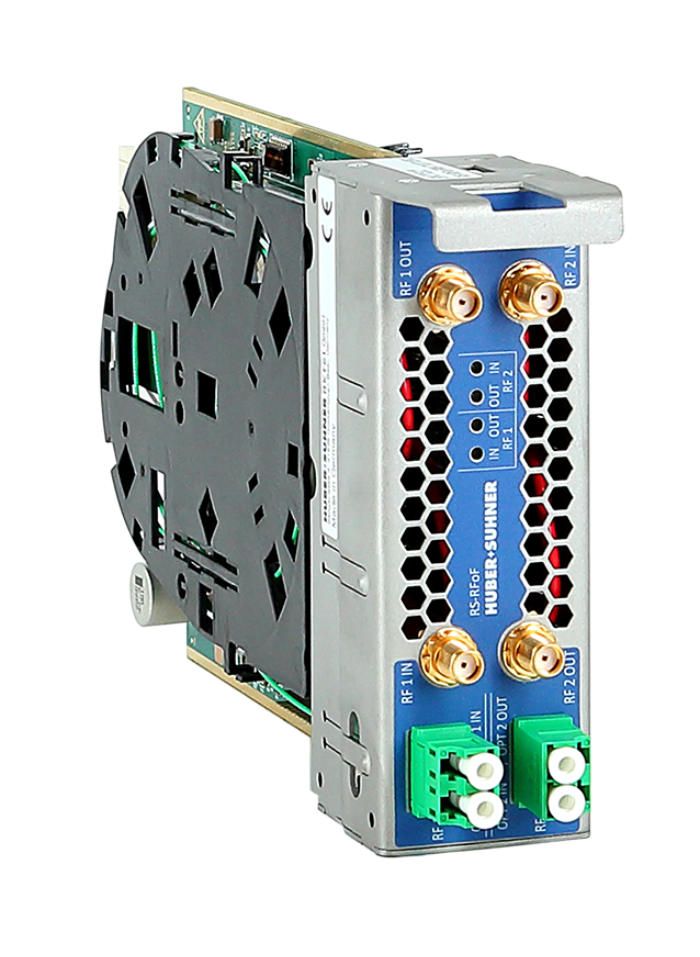

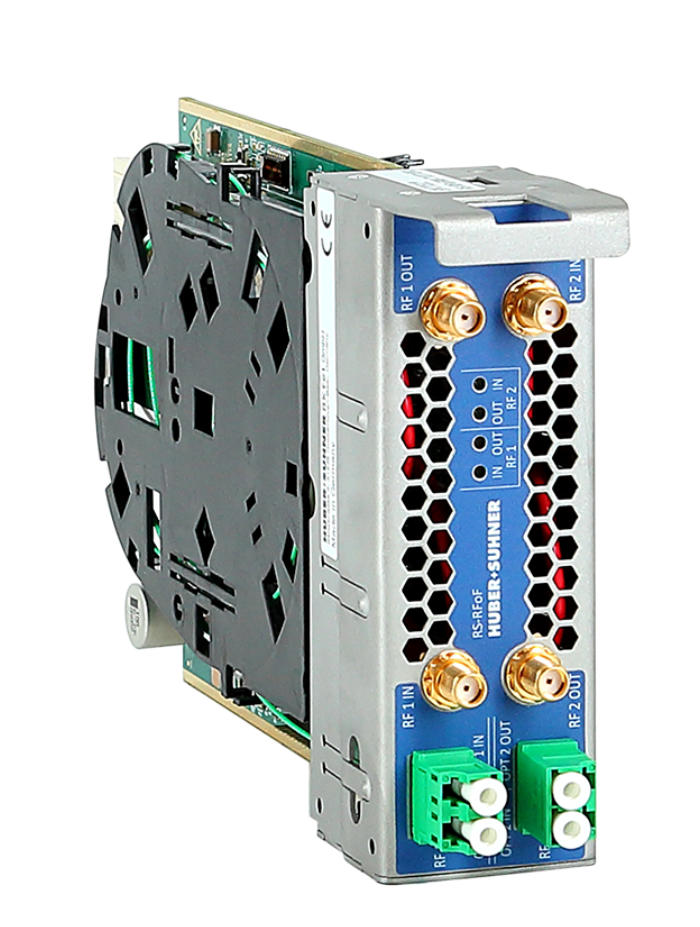

Dual RX / TX, 7.125GHz, 2 RF IN / OUT, 2 FO IN / OUT

RS-RFoF08- T13T15R2

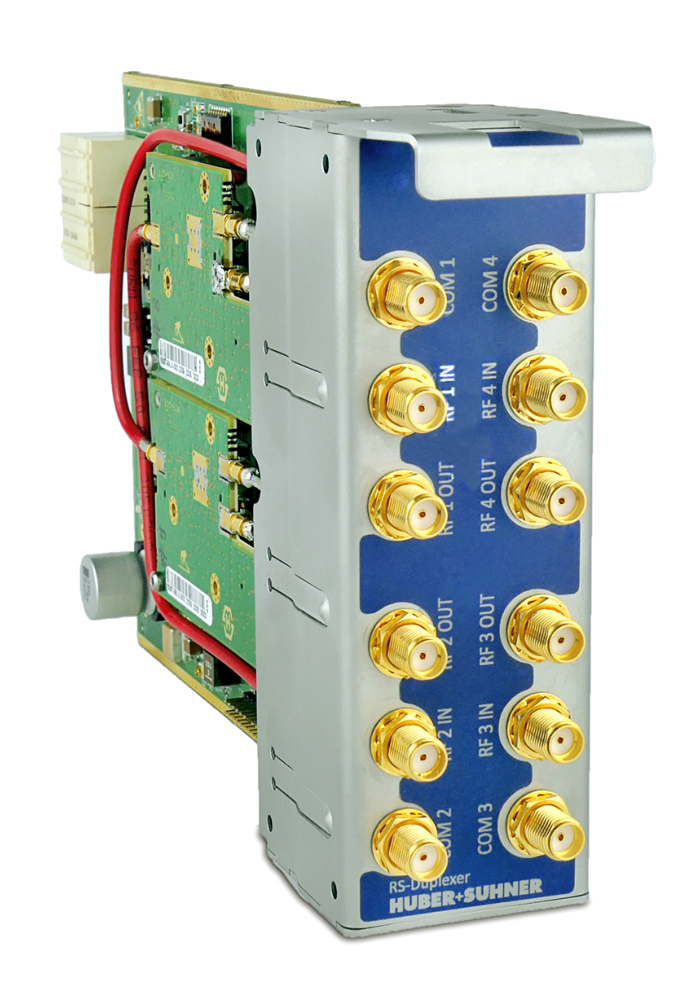

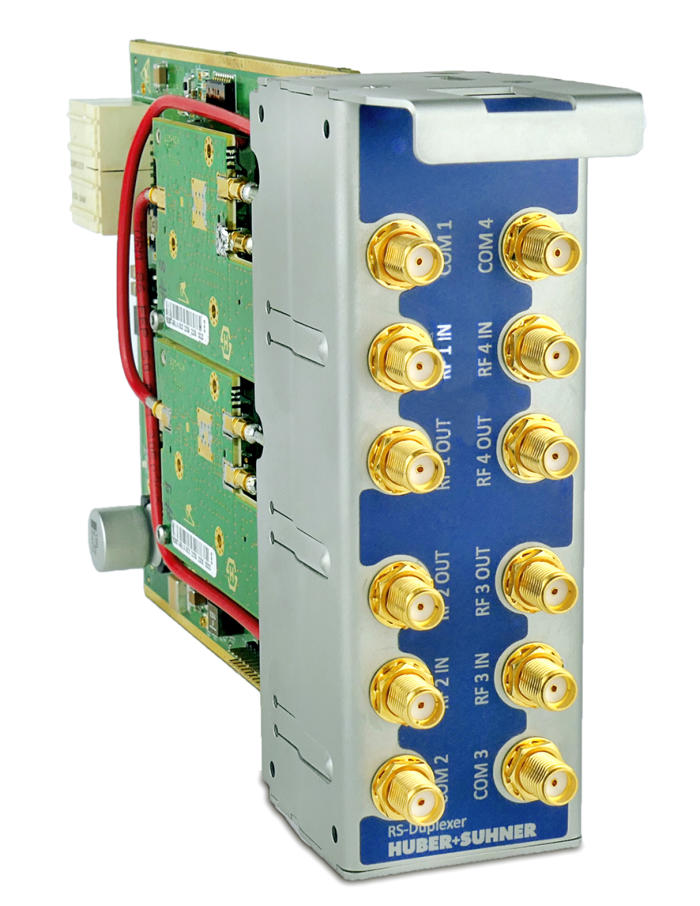

• Quadruple RF duplexer RFoF module: Includes RF duplexers and variable attenuator • Frequency range: 0.4 – 7.125 GHz • Adjustable RF attenuation: Softwarecontrolled • Chassis compatibility: Fits 3RU CUBO chassis (9 slots) and 1RU CUBO chassis (2 slots) • Hot swappable modules • CUBO rack NIC: Offers WebGUI, SNMP, and RESTCONF interface

RF duplexer, quadruple, bi-directional, 4 COM, 4 RF IN / OUT

RS-RFoF08-DUP
