Ethernet Switch
•
Product family: Railway Ethernet Switch with 10G
Uplinks
•
Fully managed Ethernet switch for on-board train
networks (Train Operator Network) / Backbone
•
Connecting all on-board Ethernet based devices and
applications
•
Designed for railway applications and compliant with
EN 50155 and EN 45545-2
•
Fanless design
•
Aluminium die-cast housing for wall or ceiling
installation
•
In-house hardware and software development at
HUBER+SUHNER
•
Made in Germany
•
Up to 6x 10GBase-T uplinks via M12 x-coded
connector
- Optionally with up to 2x2 bypass connection
•
Optionally 2x 10GBase-SR uplinks via Q-ODC (MM)
connector
- Optionally with bypass connection
•
24x 1000Base-T user ports via M12 x-coded
connector
•
26x PoE ports acc. to IEEE802.3bt with up to
90W/port
- All 24x 1000Base-T ports and 2x 10GBase-T ports
•
Supports hardware redundancy mechanism via
bypass circuit
•
Extended input voltage range of 24VDC … 110VDC
•
High port density with all ports on the front
(350x250mm) (ex. Q-ODC)
•
Separate Power over Ethernet voltage input for
optional usage
Railway Ethernet Switch with 10G Uplinks
Contact us
Do you have questions
and would you like a
personal consultation?
Do not miss
any news!
Sign-in for our
newsletter.

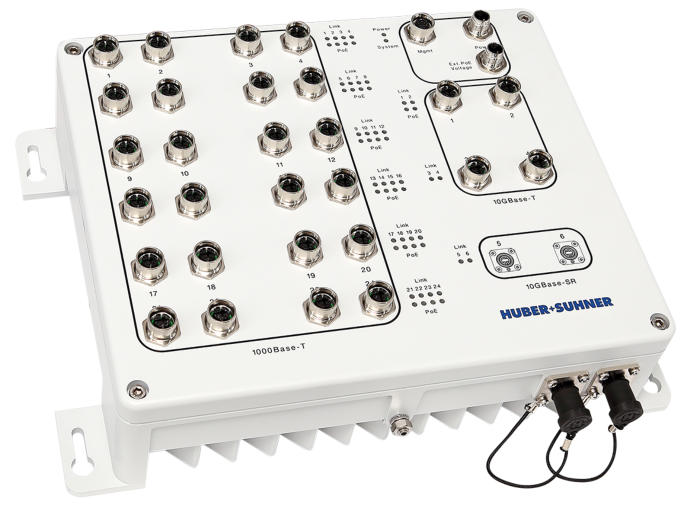

RES10G-2804-2SR-26P

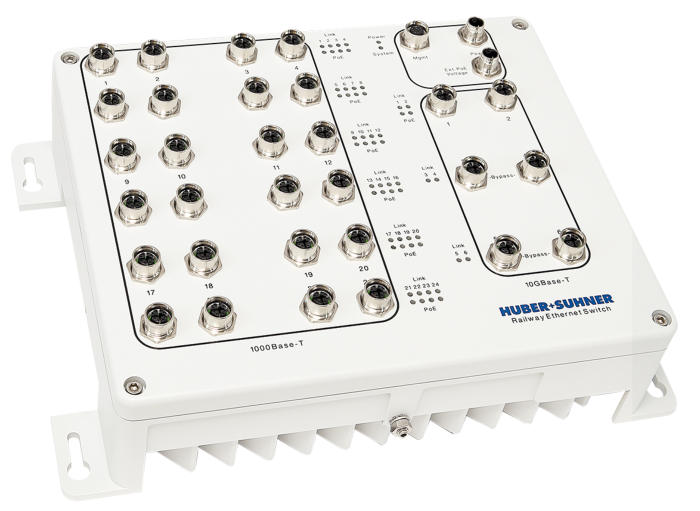

RES10G-3006B-2SR-26P / RES10G-3006BB-26P
