RFoF

RFoF modules
• Excellent stability • Gain flatness (typ. 1 dB) • High dynamic range • Monitoring functions • L-Band application • SATCOM transmission • Radar applications

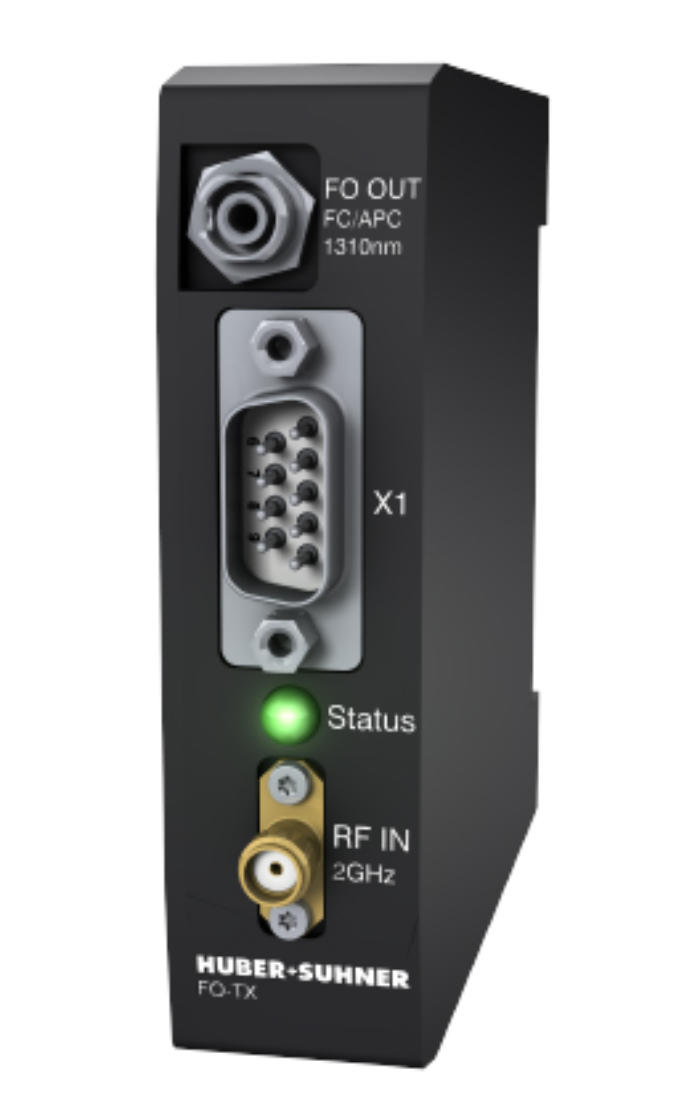

Transmitter, 2 GHz, 1310nm / 1550nm, DIN Rail, 1 RF IN, 1 FO Out
Press Jobs Legal notice Data protection Login GTC
Contact us Do you have questions and would you like a personal consultation?
Do not miss any news! Sign-in for our newsletter.
Subscribe
Catalogues ES12XL
RFoF1 - 2GHz LN 1310 (TX) / RFoF1 - 2GHz LN 1550 (TX)
• Wide bandwidth from 20 MHz to 6 GHz • Plug and Play: No external control required • Analog RF signal conversion to optical and back

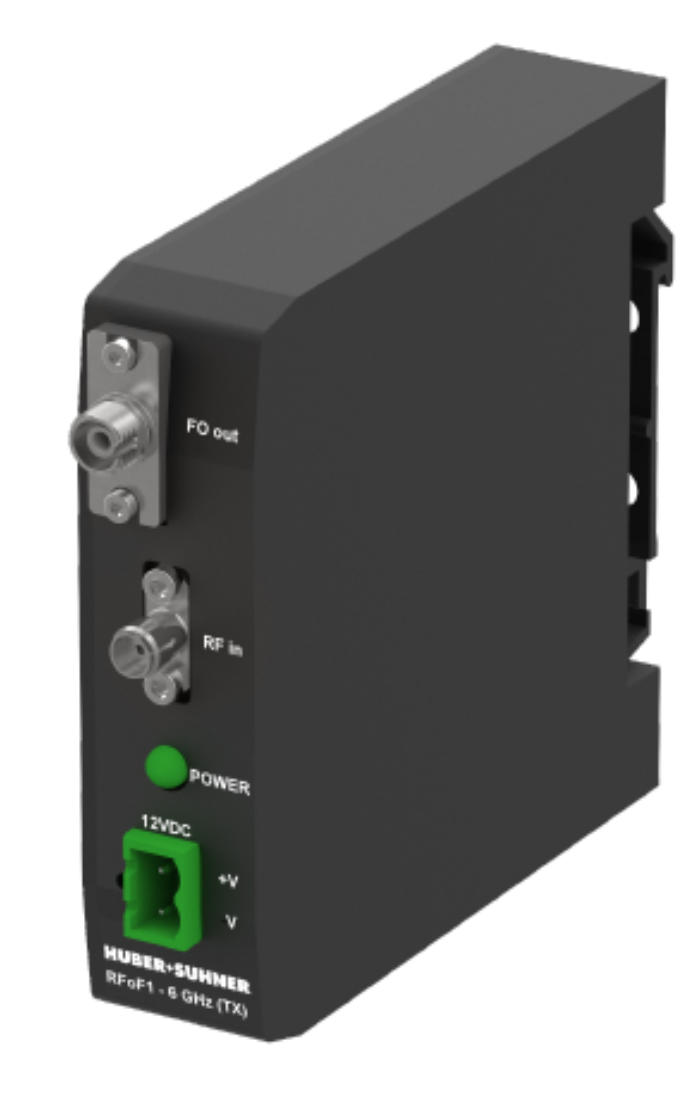

Transmitter, 6 GHz, DIN Rail, 1 RF IN, 1 FO Out
ES12XL
RFoF1 - 6GHz (TX)
• Wide bandwidth from 20 MHz to 6 GHz • Plug and Play: No external control required • Analog RF signal conversion to optical and back
Receiver, 6 GHz, DIN Rail, 1 RF OUT, 1 FO IN
ES12XL
RFoF1 - 6GHz (RX)
• Wide bandwidth from 0.1 up to 40 GHz • Stable fixed gain and RF pe!ormance over the full operating temperature range • High spurious-free dynamic range (SFDR) • Local LED status indication and SUB-D monitoring signals • Conforms to class 1 emission level per CDRH and IEC-835 (EN 60825 standards) • -20°C to +65°C operating case temperature range • Small form factor for flange mounting
Receiver, 40 GHz, Flange mount, 1 RF OUT, 1 FO IN
ES12XL
RFoF1 - 40 GHz (RX)
• Wide bandwidth from 0.1 up to 40 GHz • Stable fixed gain and RF pe!ormance over the full operating temperature range • High spurious-free dynamic range (SFDR) • Local LED status indication and SUB-D monitoring signals • Conforms to class 1 emission level per CDRH and IEC-835 (EN 60825 standards) • -20°C to +65°C operating case temperature range • Small form factor for flange mounting
Transmitter, 40 GHz, Flange mount, 1 RF IN, 1 FO Out
ES12XL
RFoF1 - 40 GHz (TX)
• low jitter / phase noise • Excellent stability • High phase accuracy • Monitoring functions • Timing and synchronization • Low phase noise reference and local oscillator signal distribution • Radar applications • Test and measurement

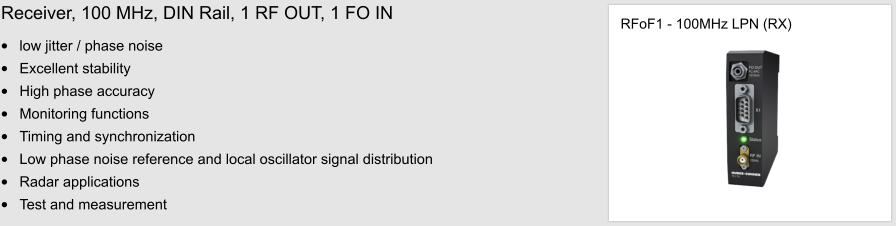

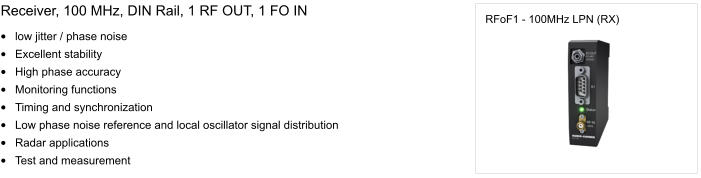

Receiver, 100 MHz, DIN Rail, 1 RF OUT, 1 FO IN
RFoF1 - 100MHz LPN (RX)
• Wide bandwidth from 0.1 up to 22 GHz • Stable fixed gain and RF performance over the full operating temperature range • 1550 nm wavelengthLocal LED status indication • SUB-D (RS 485) and USB-C inte!ace, access via DMT tool (MS Windows) • Laser conforms to class 1 emission level per CDRH and IEC-835 (EN 60825 standards) • -20°C to +65°C operating case temperature range • Small form factor for flange mounting • High spurious-free dynamic range (SFDR)

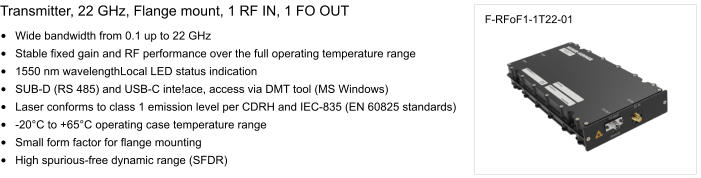

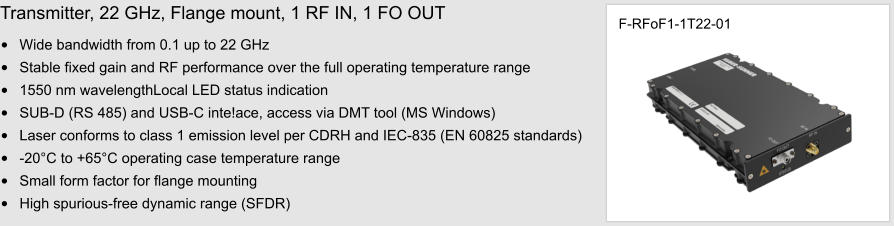

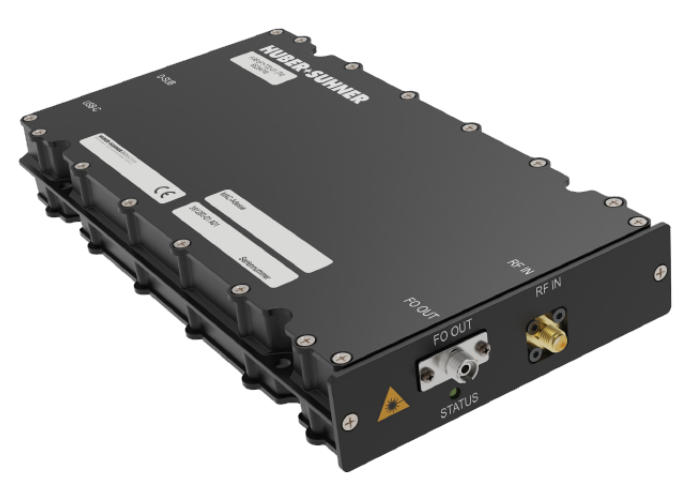

Transmitter, 22 GHz, Flange mount, 1 RF IN, 1 FO OUT
F-RFoF1-1T22-01
• Wide bandwidth from 0.1 up to 22 GHz • Stable fixed gain and RF performance over the full operating temperature range • Local LED status indication • SUB-D (RS 485) and USB-C inteface, access via DMT tool (MS Windows) • Laser conforms to class 1 emission level per CDRH and IEC-835 (EN 60825 standards) • -20°C to +65°C operating case temperature range • Small form factor for flange mounting • High spurious-free dynamic range (SFDR)

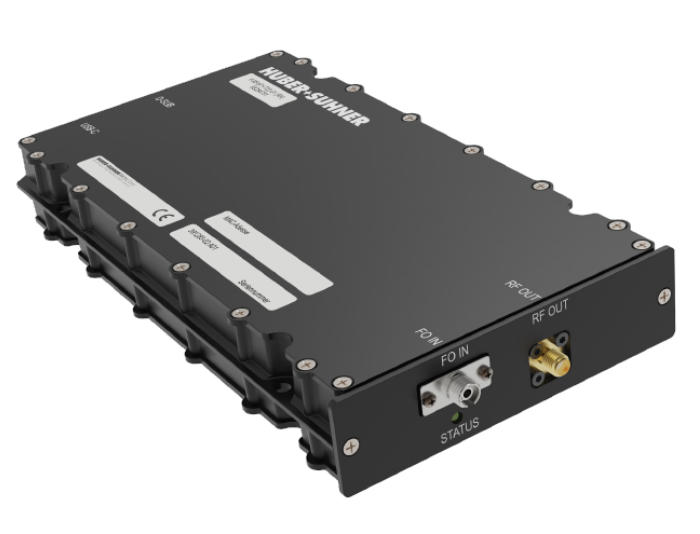

Receiver, 22 GHz, Flange mount, 1 RF OUT, 1 FO IN
ES12XL
F-RFoF1-1R22-01
