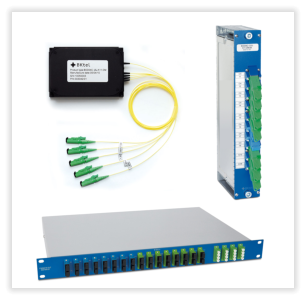

Combination of two wavelength grids with 40 DWDM channels in an interleaving way in • DWDM CIN networks • Optical multiplexer for OSC and OTDR optical signals Features • Passive DWDM solution: - no electrical power, software or temperature control required • Low insertion loss • 50 GHz ITU grid channel spacing • Available in - BK housing BIL-50-K20-BK - 19“ - 1 slot housing with adaptors BIL-50-K20-H

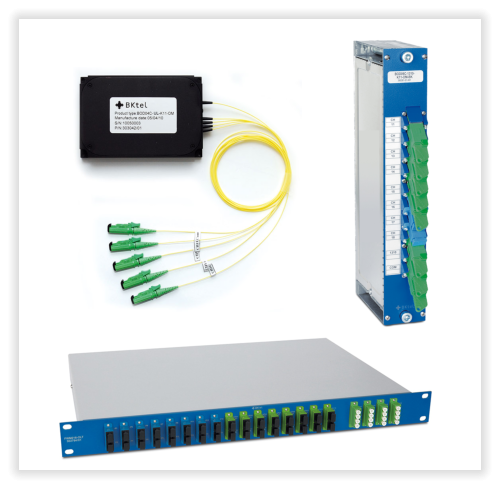

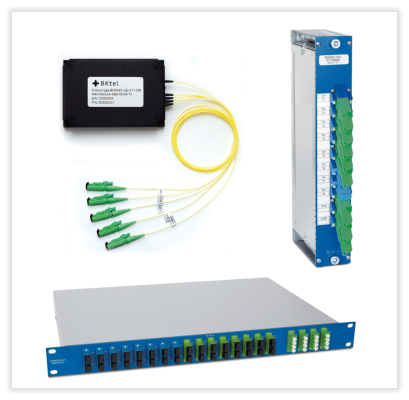

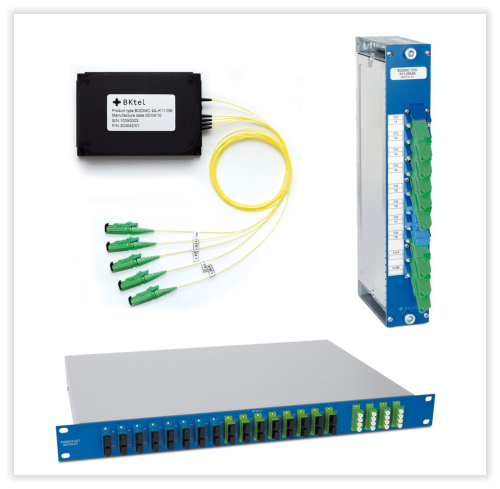

Optical Multiplexing and Demultiplexing of optical signals in: • DWDM CIN networks • MANs Features • Silica-on-silicon planar technology • 100 GHz ITU grid channel spacing, even and odd versions • High isolation • Low insertion loss, 5 dB for all DWDM channels • Outdoor rated • Passive DWDM solution: - no electrical power, software or temperature control required • Available in - 19" - 1 HU housing with adaptors BOD4010-AF- K(+)xx-H - 1 unit BK module housing BOD4010-AF-K(+)xx-BK - HUBER+SUHNER LISA cassette BOD4010-AF- K(+)xx-LS

BOABnxxx-GFF

KOAxExxxGFF-xxxGFF

NECxE

• Web browser management and SNMP management • Usage in outdoor fiber nodes and in hub/headend locations • Eight RJ45 connectors for 10/100/1000 Mbit/s Ethernet supporting SNMP and embedded webserver • RS485 on rear connector to poll slave units via BK chassis bus • Two SFP (smal form factor pluggable) standard cages for 1GbE SFP transceivers • GPIO port with 5 GPIO interfaces • USB device interface for local device management via web browser (RNDIS) access • USB host interface • LED module status indicator • LCD 128 x 128 RGB display and 5-way joystick for manual (local) control • BK mechanics with module width 1 and BK compliant powering • Webserver for HTTP and HTTPS remote access management interface • TLS 1.2 Security Enging • Web interface GUI for mobile devices • IPv4 support and IPv6 support • SNMP support v1, v2, v3 • Event log (history of alamrs/warnings/events) • Advanced user management • Limits of parameters for alarms/warning message generation • Display of graphical rackview

10G fiber to fiber media converter for CIN networks

Usage in outdoor fiber nodes and in hub/headend locations Features • Two SFP+ (small form factor pluggable) standard cages for 10GbE SFP+ transceivers, backwards compatible for 1GbE SFP transceivers • Two SFP (small form factor pluggable) standard cages for 1GbE SFP transceivers • Five RJ45 connectors for 10/100/1000 Mbit/s Ethernet supporting SNMP and embedded webserver • IEEE 1588 V2 PTP support at the SFP+ interfaces • In band or out band management • Dying Gasp via SNMP Trap • Integrated network element controller for HUBER+SUHNER BKtel devices • Web browser management and SNMP management • USB device interface for local device management via web browser (RNDIS) access • Configurable RS485 or LON on rear connector to poll slave units via BK chassis bus • LED module status indicator • LCD 128 x 128 RGB display and 5-way joystick for manual (local) control • BK mechanics with module width 1 and BK compliant powering • Webserver for HTTP and HTTPS remote access management interface • TLS 1.2 Security Engine • Web interface GUI for mobile devices • IPv4 support v1, v2, v3 • Event log (history of alarms/warnings/events) • Advanced User Management • Limits of parameters for alarms/warning message generation • Event masking of managed network elements • Device Reset of managed network elements • Display of inventory data • Display of graphical rack view
